Light weight capability and full speed fun.

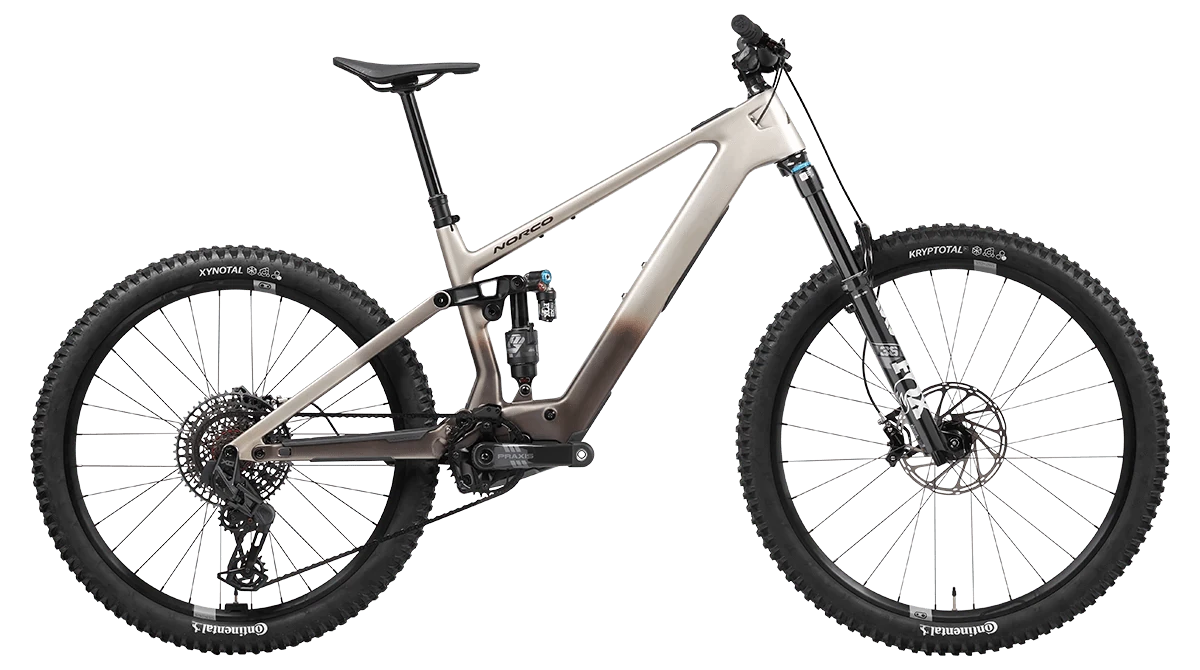

With 140mm of custom-tuned, precision-engineered suspension travel and 150mm fork travel, the Fluid VLT C1 140 delivers an improved ride feel with the latest in integrated e-mtb technology from Bosch.

Learn More

DETAILS
The latest in integrated e‑MTB technology from Bosch.
Built to Accommodate Rider Preference.
Bosch Performance Line SX with 400Wh battery.
Control your assist and range with the Bosch eBike Flow App
Reactive, playful, ride performance.
Uncompromising components engineered and spec'd for light weight capability.
Set up like a Pro – features the Ride Aligned™ Setup Guide.
No Other Way Limited Lifetime Warranty.

Frameset
FRAME    Fluid VLT Carbon Front Triangle, Carbon SS and CS, 27.5" Wheel, 140mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™
FORK    Fox 36 Performance Elite, 29", 150mm Travel, 44mm Offset
REAR SHOCK    Fox FLOAT X2 Performance Elite, 185x55mm Trunnion
Drivetrain
REAR SHIFTER    SRAM Pod Ultimate Controller
REAR DERAILLEUR    SRAM X0 Eagle AXS T-Type
CRANKSET    Praxis Carbon Bosch, 165mm
CASSETTE    SRAM 1295 T-Type, 10-52T
CHAIN    SRAM XO Eagle T-Type
Brakes
FRONT BRAKE    SRAM Code Silver Stealth, 4-Piston, Metallic Pads
FRONT BRAKE ROTOR    SRAM Centreline, 200mm
REAR BRAKE    SRAM Code Silver Stealth, 4-Piston, Metallic Pads
REAR BRAKE ROTOR    SRAM Centreline, 180mm
BRAKE LEVERS    SRAM Code Silver Stealth 4-Piston
Components
HANDLEBAR    One Up Carbon 800mm, 20mm Rise
STEM    Norco SL 6061 Alloy 40mm Length, 35mm Clamp
SEATPOST    One Up Travel Adjust Dropper, 31.6mm, 125mm (S1), 150mm (S2), 170mm (S3), 200mm (S4, S5)
HEADSET    FSA No. 57 ZS, Carbon Top Cover
HEADSET SPACER    Carbon, 2x10mm, 1x5mm
SADDLE    Fizik Ridon
GRIPS    WTB Wavelength Grip
Wheels
FRONT HUB    Crank Bros. Synthesis Alloy, 110x15mm Boost, 6-Bolt
REAR HUB    Crank Bros. Synthesis Alloy, 148x12mm Boost, Star Ratchet, 6-Bolt, XD
RIMS    Crank Brothers Synthesis Alloy Wheelset Enduro E-Bike, 27.5" Rear, 29" Front.
FRONT TIRE    Continental Kryptotal 29" x 2.4" Trail
REAR TIRE    Continental Xynotal 27.5" x 2.4" Trail
Electric Components
DRIVE UNIT    Bosch Performance Line SX
BATTERY    Bosch CPT 400Wh
Weight
WEIGHT    19.3 kg (42.5 lbs)
WEIGHT SIZE    S3
