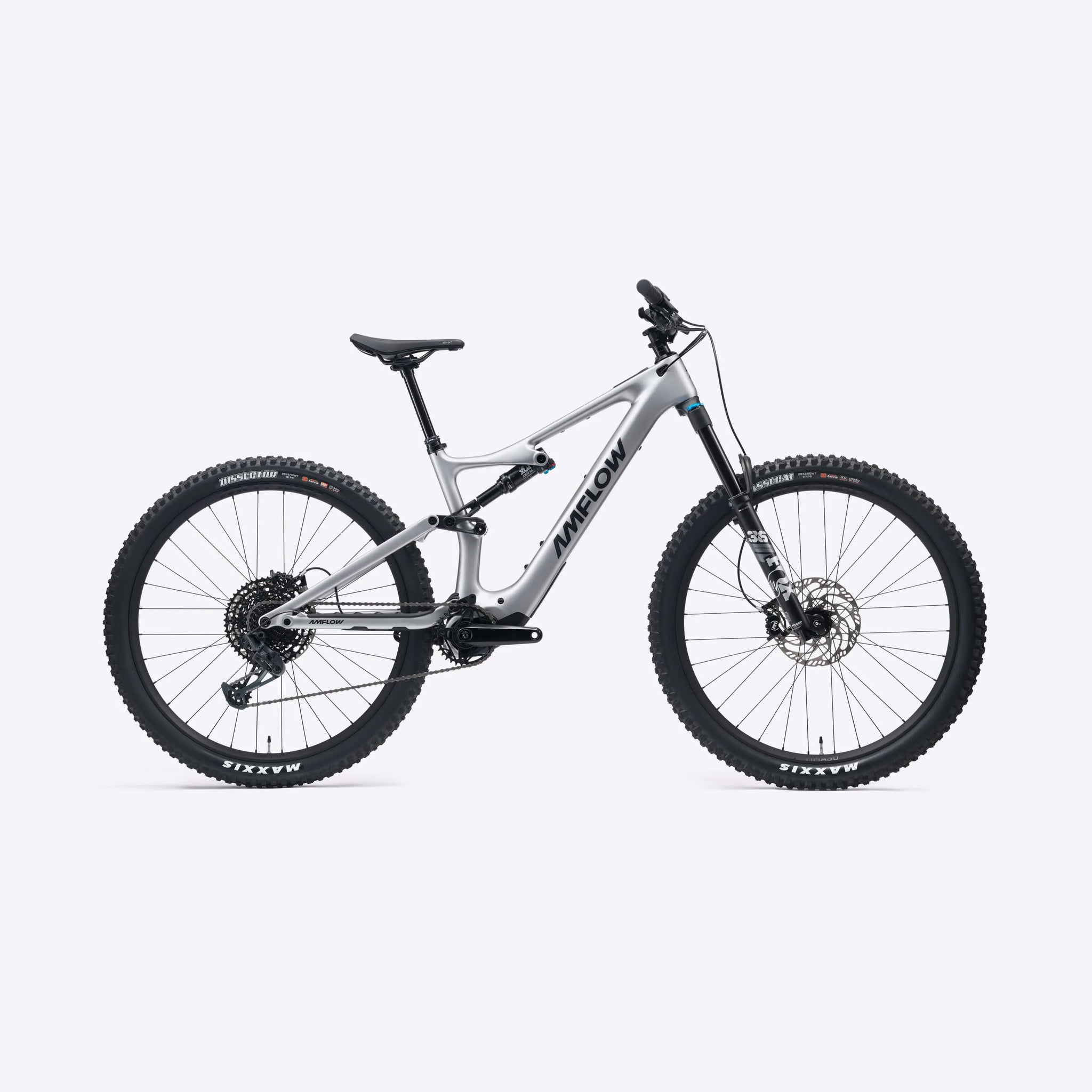

Amflow PL Carbon Frame
Satin Silver
150mm rear travel
Compatible with 27.5" and 29" rear wheels
Amflow PL Carbon (800 Wh)
Item is in stockHurry! Low inventoryAvailable now - Contact us
Item is unavailable
The Amflow PL electric mountain bike offers 850 watts of peak power in an ultra-light build weighing 19.2 kg. [1] With its unrivaled combination of power, range, weight, and intelligent features, this groundbreaking eMTB is built for the trailblazers.
Amflow PL's ultra-light carbon fiber frame weighs just 2.27 kg, [2] for breathtaking speed and agility.
Assistance
In addition to traditional assistance modes of Eco, Trail and Turbo, the DJI Avinox Drive System also features a specialized Auto mode, which adapts assistance in real-time based on road conditions and riding position. [3] Once enabled, Auto mode empowers users to tackle a wide variety of terrain types and gradients without having to switch modes.
For the most challenging trails or steep inclines, activate Boost mode to instantly get 120 N·m of torque
For the most challenging trails or steep inclines, activate Boost mode to instantly get 120 N·m of torque
Specifications:
Frame
E-Bike System

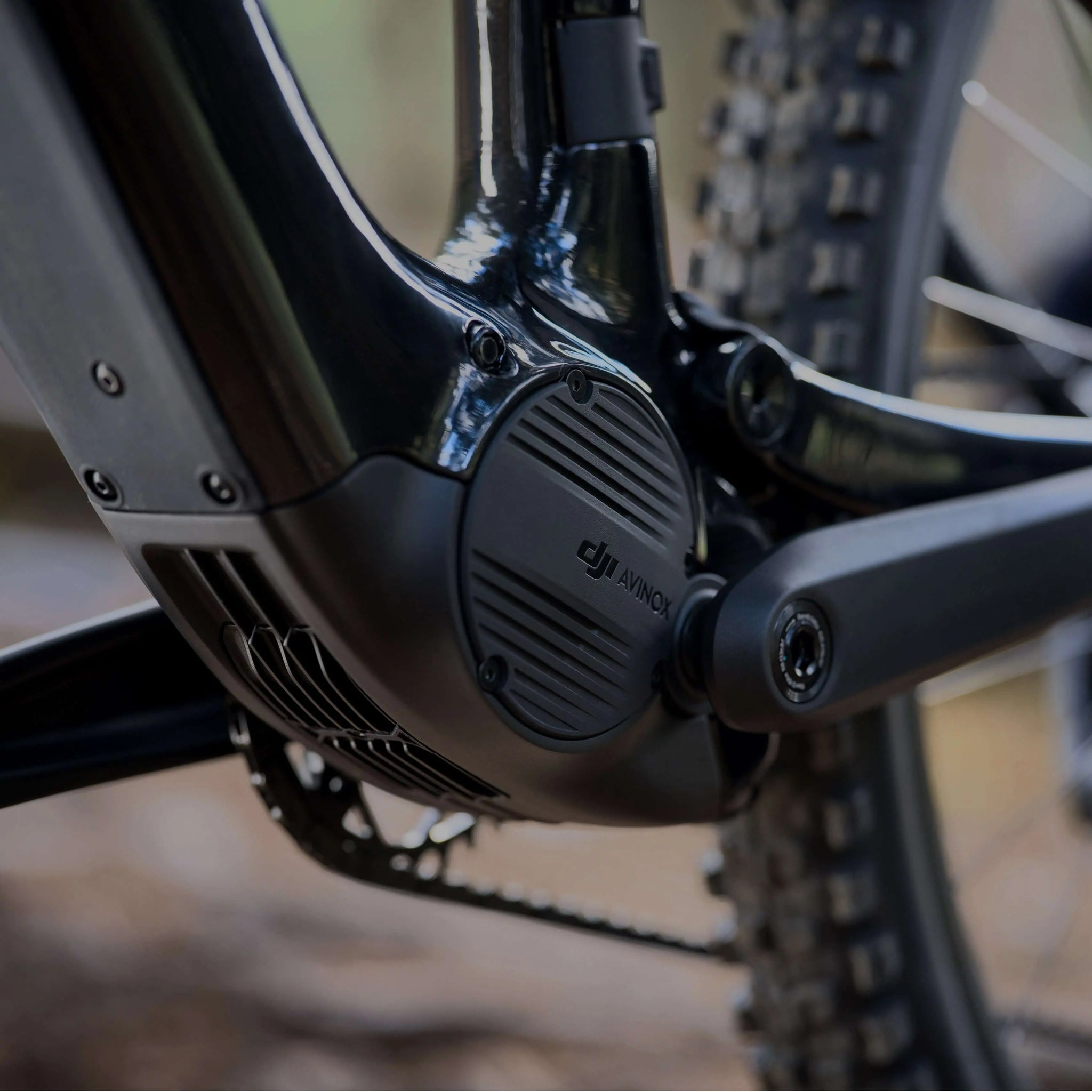

Avinox M1 Drive Unit: 105 N·m

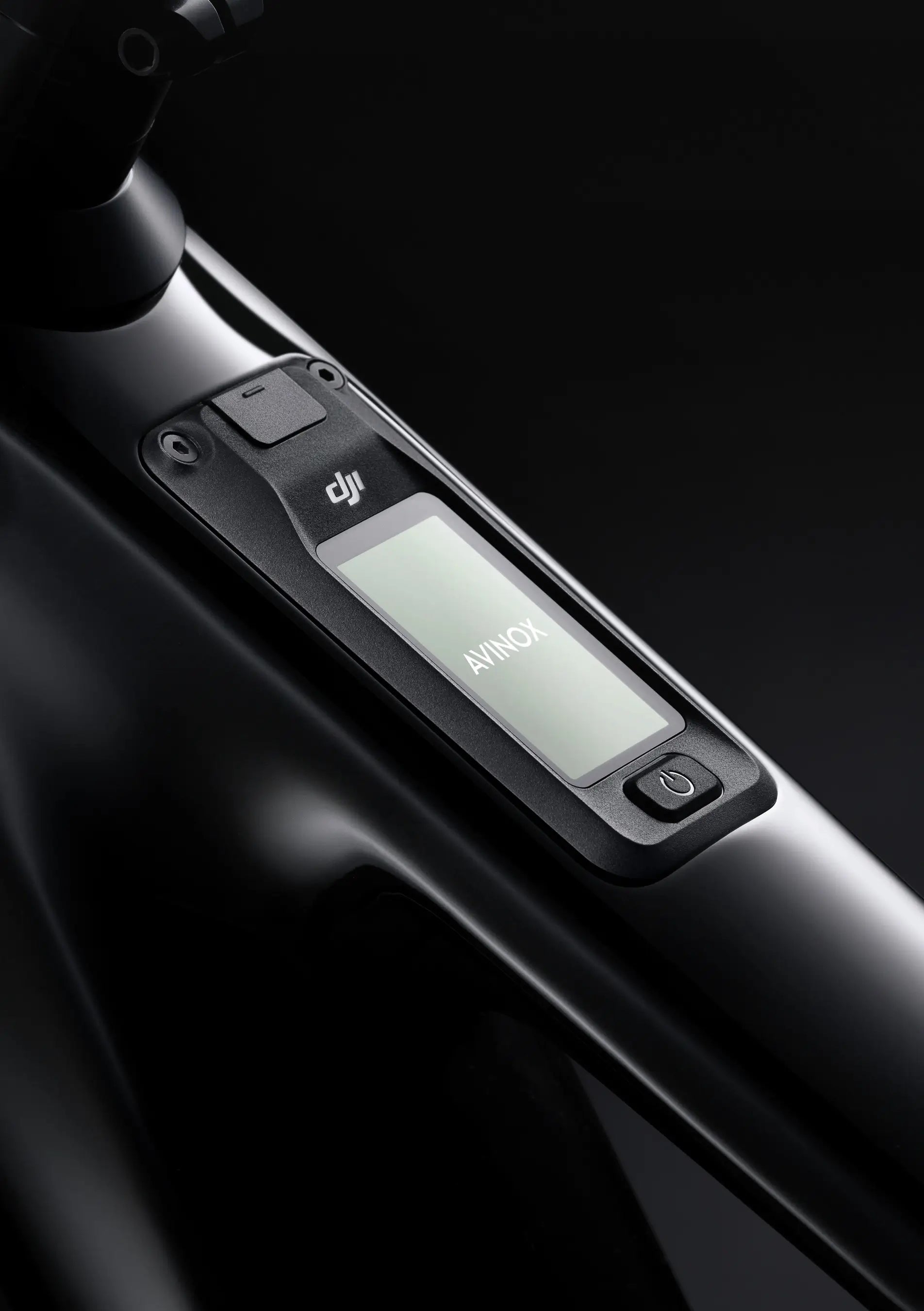

Avinox Screen: 2-inch OLED Control Display
Avinox Integrated Battery: 800Wh
Avinox Wireless Controllers: Right and left sides
Avinox Fast Charger: 12A/508W
Rear shock
FOX Float Performance
Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever
Fork
FOX 36 Performance
160mm travel, GRIP Damper, 15×110mm, 44mm rake
Transmission
Rear Derailleur: SRAM GX Eagle 12-speed
Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T
Shift Levers: SRAM GX Eagle Trigger Shifter｜Single Click
Cassette: SRAM PG-1230, 11-50T
Chain: SRAM NX Eagle
Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Brakes
Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper w/ Shiftmix 3, 203mm MDR-C Rotor (front and rear)
Wheels
Amflow HMA-30
Rims: Alloy, 29'', 30mm internal width, 32H, tubeless ready
Spokes: SAPIM E-Light J-bend
Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt
Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T
Tires
Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR
Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR
Handlebar
Amflow Enduro Alloy Handlebar
35mm rise, 800mm wide
5-degree upsweep, 9-degree backsweep
Grips
Amflow Enduro Grips
Stem
Amflow Enduro Stem, One-piece CNC
Length: 35mm
Clamping diameter: 35mm
Saddle
Selle Royal SRX Plus
Seatpost
KS Rage-i
M: 150mm
L: 170mm
XL/XXL: 190mm
Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
Shock Pump
Front and Rear Lights
Front and Rear Lights
| Size | Height (cm) | Height (inch) |
|---|---|---|
| M | 162 - 178 | 5'4 - 5'10'' |
| L | 170 - 185 | 5'7 - 6'1'' |
| XL | 175 - 191 | 5'9 - 6'3'' |
| XXL | 185 - 201 | 6'1 - 6'7'' |
