Orbea Urrun, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible

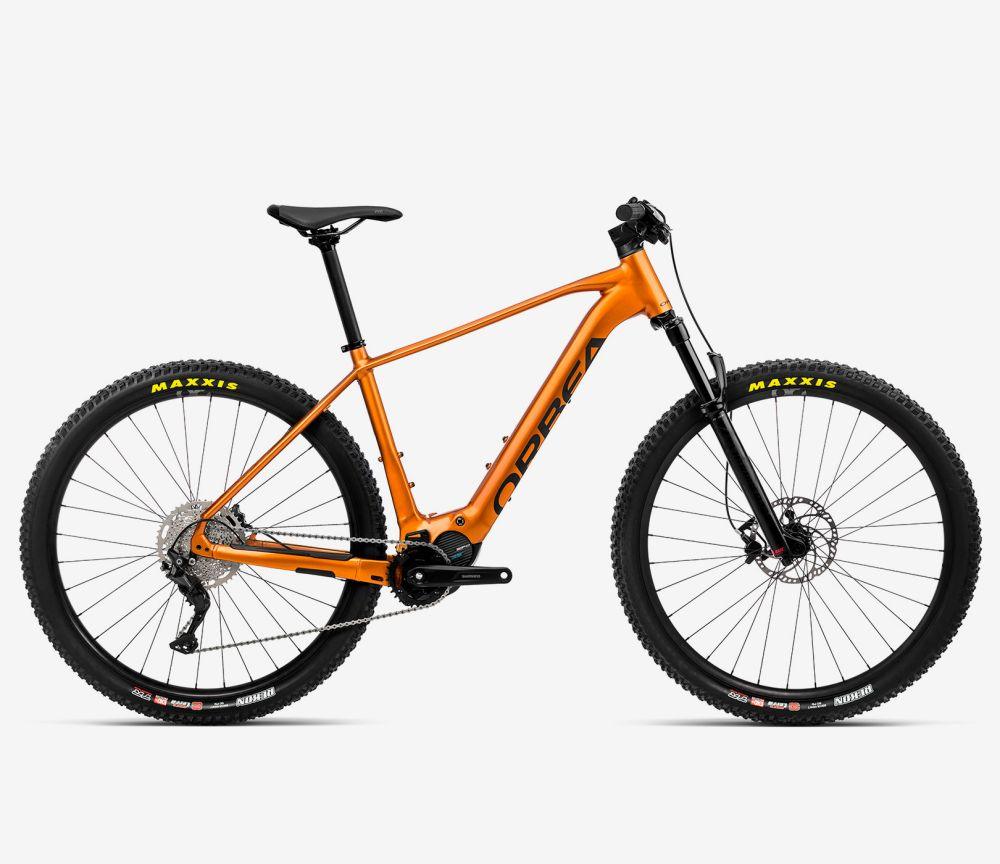

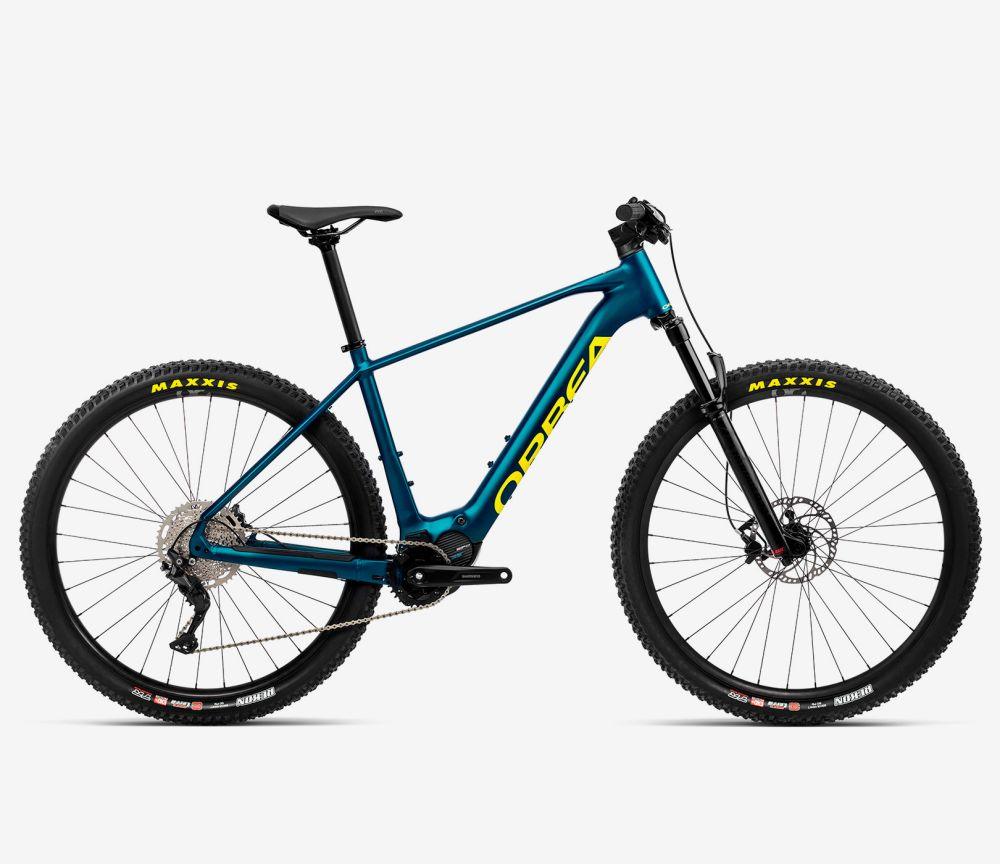

2023 Orbea Urrun 30
Item is in stockHurry! Low inventoryAvailable now - Contact us
Item is unavailable
Want to view our full range of E-Bikes? Click here
Want to demo an E-Bike before your purchase? Click here
SPECIFICATIONS
FRAMES
FRAME
FORK
Marzocchi Bomber Z2 120 QR15x110 E-Bike Optimized
HEADSET
FSA 1-1/2" Integrated Aluminium Cup
DRIVETRAIN
CHAINRING
Alloy EP8 32t
CRANK
Shimano Steps EM600
SHIFTERS
Shimano Deore M4100
CASSETTE
Shimano CS-M4100 11-46t 10-Speed
REAR DERAILLEUR
Shimano Deore M5120 SGS Shadow Plus
CHAIN
KMC e10 Turbo Silver
CHAINGUIDE
Orbea Rise chainguide
COCKPIT
HANDLEBAR
OC Mountain Control MC31, Rise20, Width 800
STEM
Alloy forged, 35mm interface, -6º, ICR
BRAKES
BRAKES
Magura MT30 Hydraulic Disc Easy Route Connection
BRAKES CONFIGURATION
WHEELS
WHEELS
Alloy, Tubeless, 29", 29c, 32H
TYRES
Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
ACCESSORIES
PEDALS
VP-537 Black
LIGHTS
COMPONENTS
SEATPOST
Alloy, 31.6mm, Setback 0
SADDLE
Selle Royal Vivo 145x269mm
EBIKE
MOTOR
Shimano EP801-RS
BATTERY
Orbea Internal 540Wh (Optional 250 Wh Range Extender)
RANGE EXTENDER
N/A
DUAL BATTERY
CHARGER
Orbea 2.Generation eBike Smart charger 42V/2-4A
REMOTE
EN600-L
We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
S
M
L
XL
11 - SEAT TUBE (C-T)
400
453
483
533
22 - TOP TUBE (EFF)
565
579
608
645
33 - HEAD TUBE
110
115
132
153
44 - CHAINSTAY
445
445
445
445
55 - BB HEIGHT
322
320
320
320
66 - BB DROP
54
56
56
56
77 - WHEELBASE
1143
1150
1173
1220
88 - HEAD ANGLE
65,5º
66º
66º
66º
99 - SEAT ANGLE
74,8º
74,6º
74,6º
74,5º
1010 - STANDOVER
798
826
848
882
1111 - REACH
395
405
440
460
1212 - STACK
631
628
647
666
1313 - FORK LENGTH
533,5
533,5
533,5
533,5
14RAKE
44
44
44
44
